產品中心 / 減速傳動
TCS型垂直軸軸裝減速器
產品簡介：
TCS型垂直軸軸裝減速器，泰興五星減速機2000多種常規型號均有貨，可以當天發貨，如果不滿意可以完全退貨。
TCS型垂直軸軸裝減速器適用范圍及標記方法
一、概述
TCS是TC的變型產品，同樣適用于起重、運輸、冶金、礦山，石油化工、建筑等行業的傳動機構。
二、型號、裝配型式及表示方法
1.型號：10、12、16、20、25

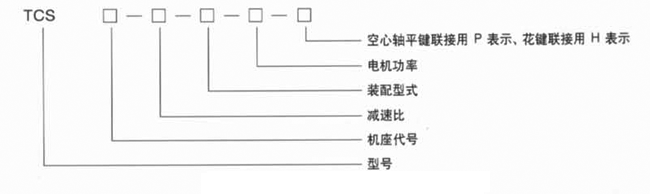

2.標記方法：
三、技術參數及外形尺寸

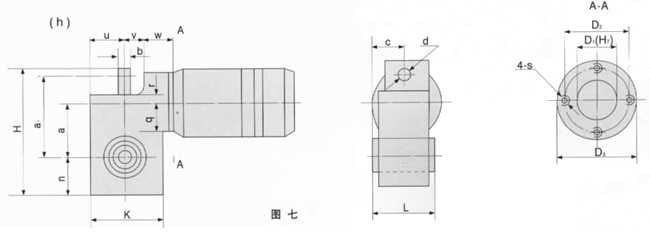

1.外形及安裝尺寸
表6
機座號
|
L
|
K
|
H
|
C
|
U
|
W
|
V
|
a
|
a1
|
n
|
q
|
r
|
d
|
b
|
D1
|
D2
|
D3
|
S
|
重量Kg
|
TCS10
|
208
|
274
|
490
|
104
|
137
|
40
|
125
|
225
|
325
|
127
|
86
|
56
|
22
|
26
|
132
|
152
|
172
|
M12
|
75
|
TCS12
|
255
|
346
|
612
|
127.5
|
173
|
45
|
150
|
280
|
406
|
160
|
101.5
|
70
|
26
|
36
|
160
|
180
|
203
|
M16
|
142
|
TCS16
|
264
|
400
|
760
|
132
|
200
|
55
|
180
|
355
|
485
|
220
|
104
|
85
|
34
|
46
|
160
|
180
|
208
|
M16
|
210
|
TCS20
|
318
|
500
|
930
|
159
|
250
|
55
|
220
|
470
|
625
|
250
|
140
|
100
|
40
|
50
|
210
|
180
|
280
|
M16
|
350
|
TCS25
|
356.5
|
620
|
1160
|
178.25
|
350
|
75
|
275
|
580
|
777
|
310
|
180
|
125
|
40
|
70
|
240
|
240
|
320
|
M20
|
820
|

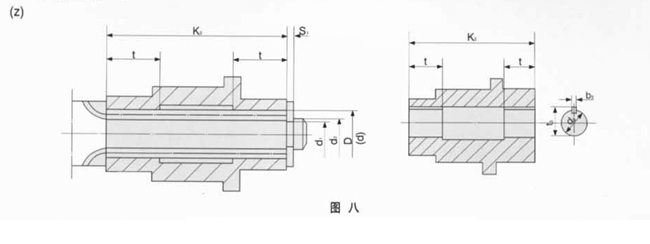

空心輸出軸聯接尺寸
機座代號
|
花鍵
|
平鍵
|
|||||||||
花鍵副
|
內花鍵大徑D
|
外花鍵大徑d
|
k2
|
t
|
S1
|
d1
|
d2
|
d3
|
b3
|
t3
|
|
10
|
INT/EXT31Z×2m×30p×6H/6h
|
65
|
64
|
208
|
60
|
2
|
57
|
60
|
50
|
14
|
53.8
|
12
|
INT/EXT35Z×3m×30p×6H/6h
|
85.5
|
84
|
255
|
65
|
2.5
|
75
|
78
|
60
|
18
|
64.4
|
16
|
INT/EXT35Z×3m×30p×6H/6h
|
109.5
|
108
|
264
|
75
|
2.5
|
96.5
|
100
|
90
|
25
|
95.4
|
20
|
318
|
85
|
2.5
|
96.5
|
100
|
100
|
28
|
106.4
|
|||
25
|
356.5
|
95
|
2.5
|
96.5
|
100
|
100
|
28
|
106.4
|
|||
用戶根據需要,從表中可選 用小一號或更小的花鍵副
承載能力：
2.工作級別為M5時，減速器承載能力表
| 公稱傳動比i | 公稱傳速r/min | 規格 | |||||
| 輸入n1 | 輸出n2 | 10 | 12 | 16 | 20 | 25 | |
| 公稱輸入功率 P KW | |||||||
| 22.4 | 1500 | 66 | 9.1 | 22.8 | 38.9 | 81 | 96 |
| 1000 | 44 | 6.1 | 15.2 | 25.9 | 54 | 64 | |
| 750 | 33 | 4.50 | 11.4 | 19.5 | 40 | 48 | |
| 25 | 1500 | 60 | 8.3 | 21.5 | 35 | 70 | 89 |
| 1000 | 40 | 5.5 | 16.5 | 23.3 | 46.5 | 59 | |
| 750 | 30 | 4.1 | 11 | 17.5 | 35 | 44.5 | |
| 28 | 1500 | 53.5 | 7.8 | 19.2 | 30.3 | 67 | 82 |
| 1000 | 35.5 | 5.2 | 12.5 | 20 | 44.5 | 54.5 | |
| 750 | 26.5 | 3.9 | 9.6 | 15.2 | 33.5 | 41 | |
| 31.5 | 1500 | 47.5 | 7.8 | 17.9 | 27.4 | 60 | 75 |
| 1000 | 31.5 | 5.2 | 11.9 | 18.2 | 40 | 50 | |
| 750 | 23.5 | 3.9 | 9 | 13.7 | 30 | 37 | |
| 35.5 | 1500 | 42 | 6.9 | 15.2 | 25.8 | 50 | 70 |
| 1000 | 28 | 4.6 | 10.1 | 17.2 | 33 | 46 | |
| 750 | 21 | 3.5 | 7.6 | 12.9 | 25 | 35 | |
| 40 | 1500 | 37.5 | 6.2 | 13.5 | 23 | 40 | 60 |
| 1000 | 25 | 4.1 | 9 | 15 | 26.5 | 40 | |
| 750 | 18.3 | 3.1 | 6.7 | 11.5 | 20 | 30 | |
| 45 | 1500 | 33 | 5.3 | 12.0 | 19.5 | 37 | 54 |
| 1000 | 22 | 3.5 | 8 | 13 | 24.5 | 36 | |
| 750 | 16.5 | 2.7 | 6 | 10 | 18.5 | 27 | |
| 50 | 1500 | 30 | 5.1 | 10.8 | 19.5 | 35 | 51 |
| 1000 | 20 | 3.4 | 7.2 | 13 | 23 | 34 | |
| 750 | 15 | 2.5 | 5.4 | 10 | 17.5 | 25.5 | |
| 56 | 1500 | 26.5 | 4.3 | 9.4 | 16.3 | 27 | 45 |
| 1000 | 17.5 | 2.8 | 6.2 | 10.8 | 18 | 30 | |
| 750 | 13 | 2.2 | 4.7 | 8.2 | 13.5 | 22.5 | |
| 63 | 1500 | 23.5 | 3.9 | 8.4 | 15.1 | 25 | 43 |
| 1000 | 15.5 | 2.6 | 5.6 | 10 | 16.5 | 28.5 | |
| 750 | 12 | 2 | 4.2 | 7.5 | 12.5 | 21.5 | |
| 71 | 1500 | 21 | 3.6 | 7.0 | 13 | 22 | 38 |
| 1000 | 14 | 2.4 | 4.5 | 8.5 | 15 | 25 | |
| 750 | 10.5 | 1.8 | 3.5 | 6.5 | 11 | 19 | |
| 80 | 1500 | 18.5 | 3.0 | 6.7 | 11 | 17 | 35 |
| 1000 | 12.5 | 2 | 4.5 | 7.3 | 11 | 23 | |
| 750 | 9 | 1.5 | 3.3 | 5.5 | 8.5 | 17.5 | |
| 90 | 1500 | 16.5 | 2.8 | 5.6 | 9.2 | 16 | 28 |
| 1000 | 11 | 1.8 | 3.7 | 6.1 | 10.5 | 18.5 | |
| 750 | 8 | 1.4 | 2.8 | 4.6 | 8 | 14 | |
| 100 | 1500 | 15 | 2.5 | 5.2 | 8.6 | 13 | 25 |
| 1000 | 10 | 1.6 | 3.4 | 5.7 | 8.6 | 16.5 | |
| 750 | 7.5 | 1.3 | 2.6 | 4.3 | 6.5 | 12.5 | |
| 115 | 1500 | 13 | 2.3 | 5 | 8.1 | 12 | 23 |
| 1000 | 8.5 | 1.5 | 3.3 | 5.4 | 8 | 1.5 | |
| 750 | 6.5 | 1.2 | 2.5 | 4.1 | 6 | 11.5 | |
| 128 | 1500 | 11.5 | 1.8 | 4.2 | 6.8 | 10.5 | 21 |
| 1000 | 7.5 | 1.2 | 2.8 | 4.5 | 7 | 14 | |
| 750 | 5.5 | 0.9 | 2.1 | 3.4 | 5.3 | 11 | |
| 145 | 1500 | 10 | 1.7 | 3.5 | 5.7 | 9.5 | 20 |
| 1000 | 6.5 | 1.1 | 2.3 | 3.8 | 6.3 | 13.3 | |
| 750 | 5 | 0.85 | 1.8 | 2.9 | 4.7 | 11 | |
| 160 | 1500 | 9 | 1.5 | 3.2 | 5.3 | 8 | 18 |
| 1000 | 6 | 1 | 2.1 | 3.5 | 5.3 | 12 | |
| 750 | 4.5 | 0.75 | 1.6 | 2.6 | 4 | 9 | |
注：配套電機功率：Nn≤容許功率÷2～2.5
3.連續工作型，減速器承載能力表
| 公稱傳動比i | 公稱傳速r/min | 規格 | |||||||
| 輸入n1 | 輸出n2 | 10 | 12 | 16 | 20 | 25 | |||
| 公稱輸入功率 P KW | |||||||||
| 22.4 | 1500 | 66 | 6.28 | 15.84 | 23.68 | 48.6 | 57.6 | ||
| 1000 | 44 | 4.48 | 11.2 | 16.30 | 33.5 | 39.7 | |||
| 750 | 33 | 3.10 | 7.9 | 11.8 | 24.3 | 28.8 | |||
| 25 | 1500 | 60 | 5.89 | 15.18 | 23.57 | 42.6 | 53.4 | ||
| 1000 | 40 | 4.20 | 10.8 | 16.25 | 29.35 | 36.8 | |||
| 750 | 30 | 2.90 | 7.5 | 11.75 | 21.3 | 26.7 | |||
| 28 | 1500 | 53.5 | 5.26 | 13.05 | 20.31 | 40.2 | 49.1 | ||
| 1000 | 35.5 | 3.75 | 9.30 | 14.00 | 27.7 | 33.86 | |||
| 750 | 26.5 | 2.50 | 6.50 | 10.1 | 20.1 | 24.5 | |||
| 31.5 | 1500 | 47.5 | 5.19 | 11.53 | 18.16 | 35.4 | 45 | ||
| 1000 | 31.5 | 3.70 | 8.23 | 12.5 | 24.4 | 31 | |||
| 750 | 23.5 | 2.50 | 5.75 | 9.1 | 17.5 | 22.5 | |||
| 35.5 | 1500 | 42 | 4. 45 | 10.18 | 16.99 | 30.6 | 42 | ||
| 1000 | 28 | 3.20 | 7.1 | 11.7 | 21 | 21.85 | |||
| 750 | 21 | 2.20 | 5.1 | 8.5 | 15.3 | 21 | |||
| 40 | 1500 | 37.5 | 4.04 | 8.88 | 15.10 | 24.6 | 36 | ||
| 1000 | 25 | 2.75 | 6.1 | 10.4 | 16.9 | 24.8 | |||
| 750 | 18.3 | 2.00 | 4.4 | 7.5 | 12.3 | 18 | |||
| 45 | 1500 | 33 | 3. 44 | 7.83 | 12.91 | 22.2 | 32.4 | ||
| 1000 | 22 | 2 .4 | 5.45 | 8.9 | 15.3 | 21.7 | |||
| 750 | 16.5 | 1.7 | 3.9 | 6.45 | 11 | 16.2 | |||
| 50 | 1500 | 30 | 3.21 | 7.00 | 12.06 | 21 | 30.6 | ||
| 1000 | 20 | 2.2 | 4.8 | 8.31 | 14.5 | 21.10 | |||
| 750 | 15 | 1.60 | 3.5 | 6.00 | 10.5 | 15.3 | |||
| 56 | 1500 | 26.5 | 2.71 | 6.01 | 10.43 | 16.2 | 27 | ||
| 1000 | 17.5 | 1.9 | 4.13 | 7.15 | 11.15 | 18.6 | |||
| 750 | 13 | 1.30 | 3.00 | 5.2 | 8 | 13.5 | |||
| 63 | 1500 | 23.5 | 2.43 | 5.32 | 9.56 | 15 | 25.3 | ||
| 1000 | 15.5 | 1.70 | 3.60 | 6.55 | 10.3 | 17.4 | |||
| 750 | 12 | 1.2 | 2.65 | 4.75 | 7.5 | 12.6 | |||
| 71 | 1500 | 21 | 2.24 | 4.95 | 8.08 | 13.2 | 21.8 | ||
| 1000 | 14 | 1.5 | 3.41 | 5.5 | 9.1 | 15 | |||
| 750 | 10.5 | 1.1 | 2.5 | 4 | 6.6 | 10.5 | |||
| 80 | 1500 | 18.5 | 1.85 | 4.13 | 6.85 | 10.2 | 21 | ||
| 1000 | 12.5 | 1.3 | 2.8 | 4.72 | 7 | 14.4 | |||
| 750 | 9 | 0.9 | 2.0 | 3.4 | 5.1 | 10 | |||
| 90 | 1500 | 16.5 | 1.70 | 3.89 | 5.74 | 9.6 | 16.3 | ||
| 1000 | 11 | 1.1 | 2.68 | 3.9 | 6.6 | 11.20 | |||
| 750 | 8 | 0.8 | 1.94 | 2.85 | 4.8 | 8.15 | |||
| 100 | 1500 | 15 | 1.49 | 3.13 | 5.24 | 7.8 | 15 | ||
| 1000 | 10 | 1 | 2.15 | 3.5 | 5.35 | 10 | |||
| 750 | 7.5 | 0.72 | 1.56 | 2.6 | 3.9 | 7.5 | |||
| 115 | 1500 | 13 | 1.40 | 3.09 | 5.05 | 7.2 | 15 | ||
| 1000 | 8.5 | 0.95 | 2.10 | 3.45 | 4.9 | ||||
| 750 | 6.5 | 0.70 | 1.5 | 2.50 | 3.6 | ||||
| 128 | 1500 | 11.5 | 0.16 | 2.58 | 4.28 | 6.36 | 13.8 | ||
| 1000 | 7.5 | 0.75 | 1.78 | 2.90 | 4.35 | 9.5 | |||
| 750 | 5.5 | 0.55 | 1.25 | 2.14 | 3.15 | 6.9 | |||
| 145 | 1500 | 10 | 1.06 | 2.43 | 3.59 | 5.7 | 12 | ||
| 1000 | 6.5 | 0.70 | 1.67 | 2.45 | 3.9 | 8.25 | |||
| 750 | 5 | 0.50 | 1.2 | 1.75 | 2.85 | 6 | |||
| 160 | 1500 | 9 | 0.93 | 1.96 | 3.25 | 4.87 | 10.8 | ||
| 1000 | 6 | 0.65 | 1.35 | 2.2 | 3.35 | 7.4 | |||
| 750 | 4.5 | 0.45 | 0.95 | 1.62 | 2.4 | 5.4 | |||
注：配套電機功率：Nn≤容許功率÷2～2.5
4.減速器輸入軸至輸出軸的中心矩
| 型號 | 10 | 12 | 16 | 20 | 25 |
| 中心矩a | 225 | 280 | 355 | 470 | 580 |
5.公稱傳動比
| 公稱 | 22.4 | 25 | 28 | 31.5 | 35.5 | 40 | 45 | 50 | 56 |
| 63 | 71 | 80 | 90 | 100 | 114 | 128 | 145 | 160 |
